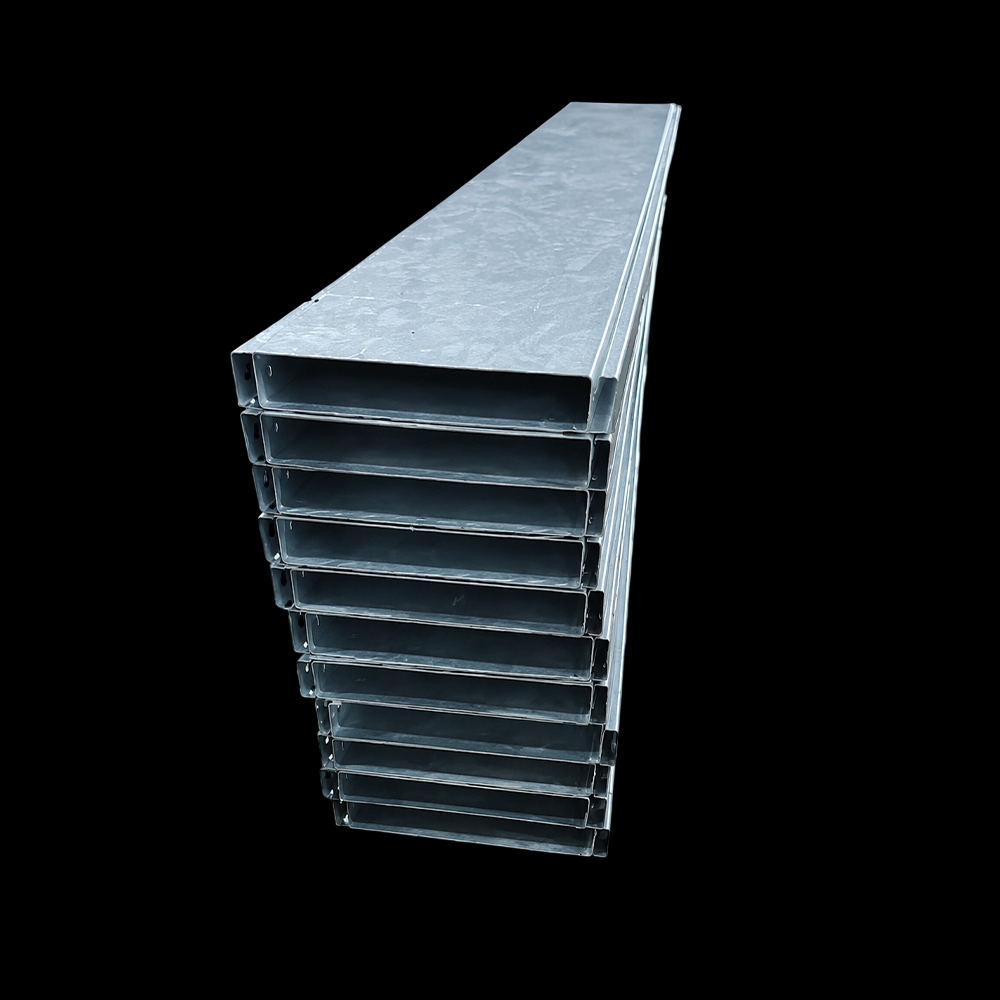

RACEWAY TYPE CABLE TRAY

Hot Dip Galvanized Raceway shall be manufactured as per IEC: 61537, IS: 2629 & IS: 4759.

Raceway of the following sizes, fabricated from 1.60 to 3.00 mm thick MS sheet in standard length of 2500 mm, complete with:

• Cover
• Coupler Plates of suitable size and thickness
• Sets of Electro-Galvanized Nuts, Bolts, and Plain Washers

Specifications:

• Width: As per requirement
• Height: As per requirement
• Thickness: as per client requirement
• Length: 2500 mm / 3000 mm
• Finish: Hot Dip Galvanized
• Zinc coating: average 64 microns or as per client requirement

Available Finishes:

• Powder Coated
• Hot Dip Galvanized

Pre-Galvanized
Type Of Raceways:
 Single Compartment
 Double Compartment
 Triple Compartment
Customizable Specifications:
 Available in various sizes and thicknesses (from 18 SWG to 10 SWG)
 Designed to meet custom project demands
 Suitable for use in commercial buildings, factories, offices, and infrastructure projects
Smart Junction Box Integration:
 Easy to install and customize
 Designed with removable top and side plates for flexible configuration
 Capable of functioning as tee, cross, or straight joints
 Top plates can be modified to accommodate power sockets and switches
