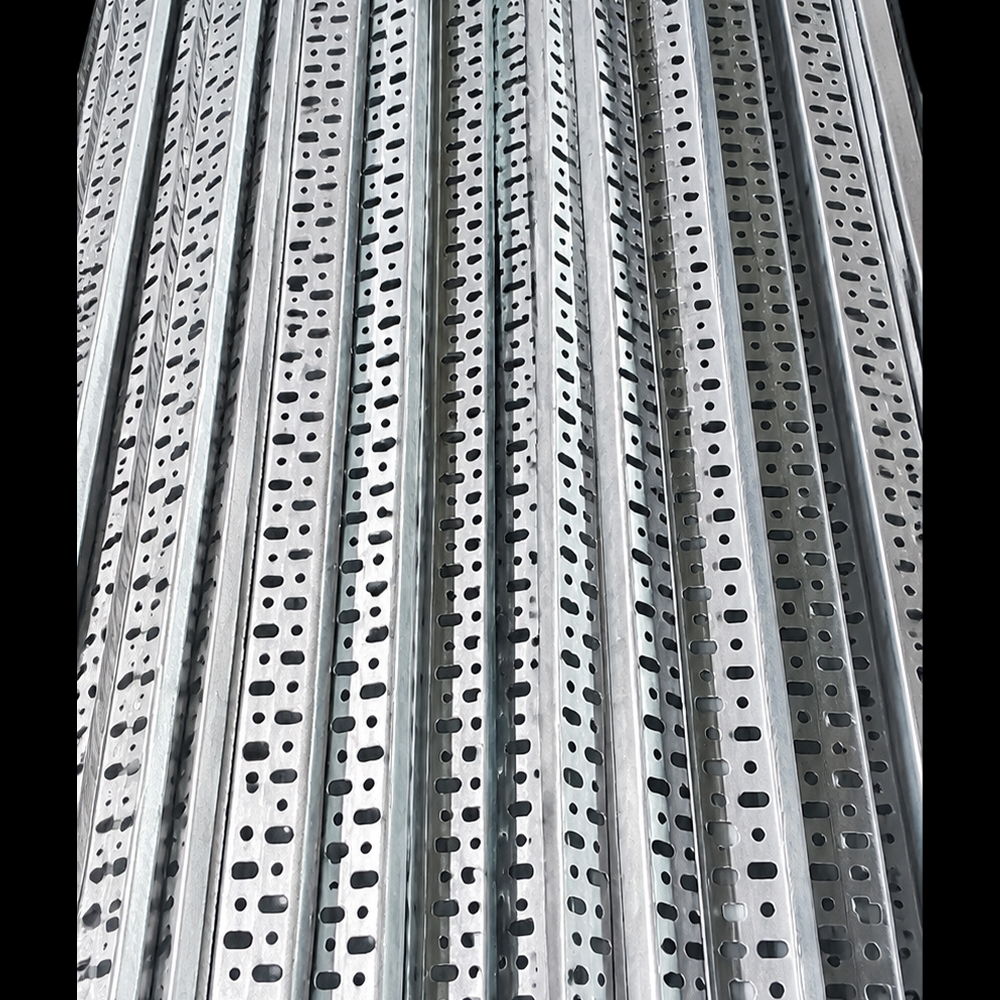

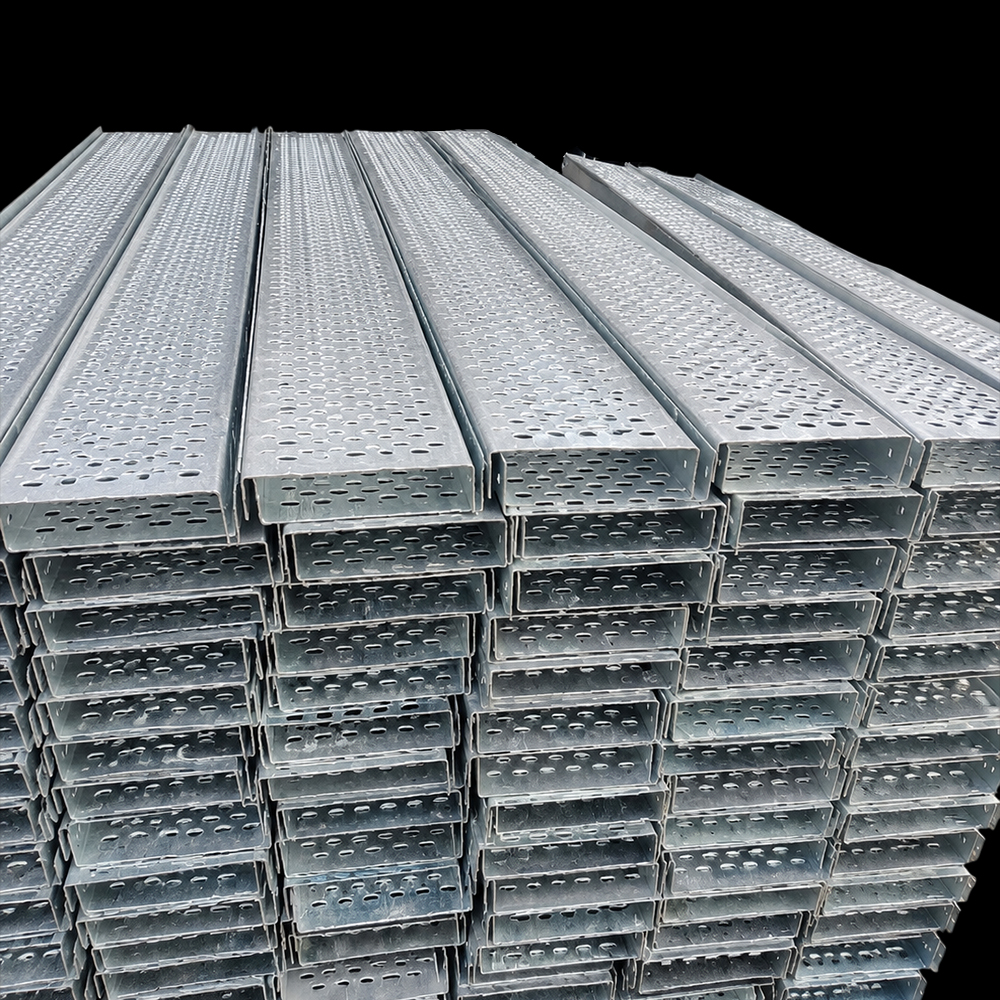

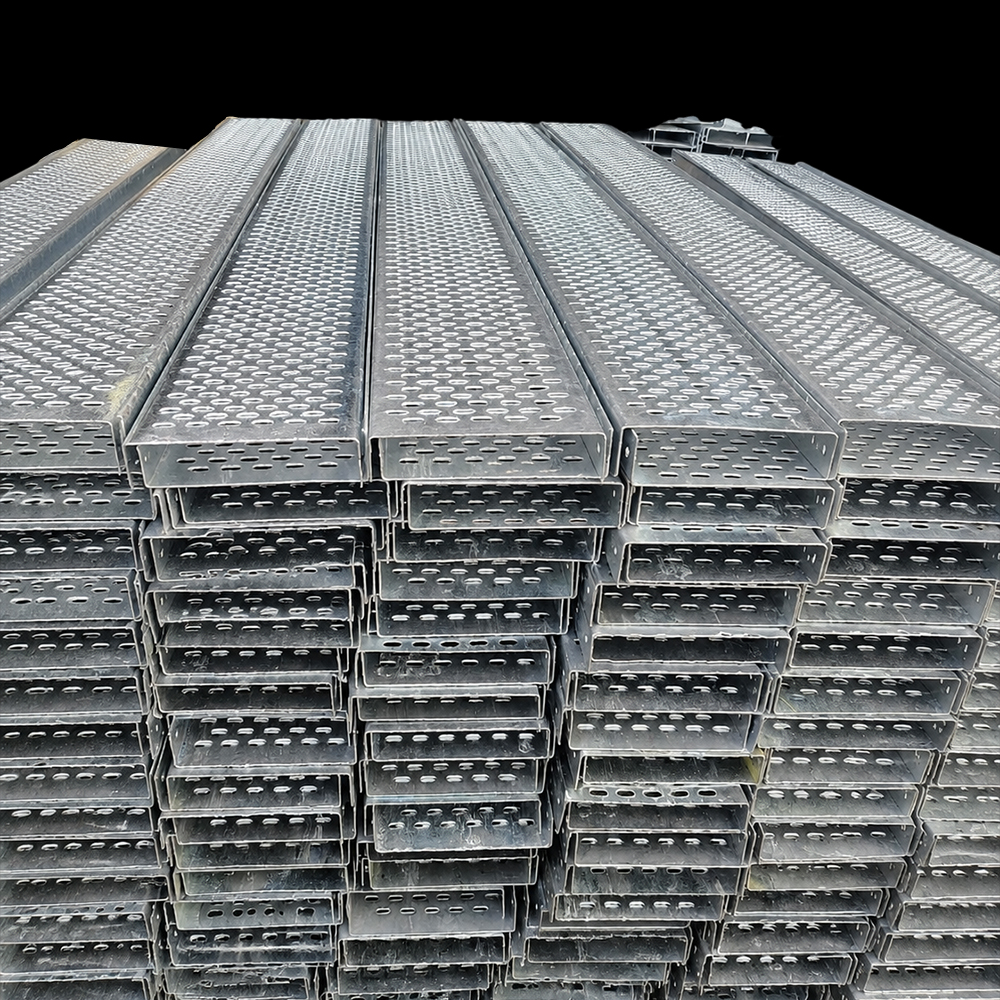

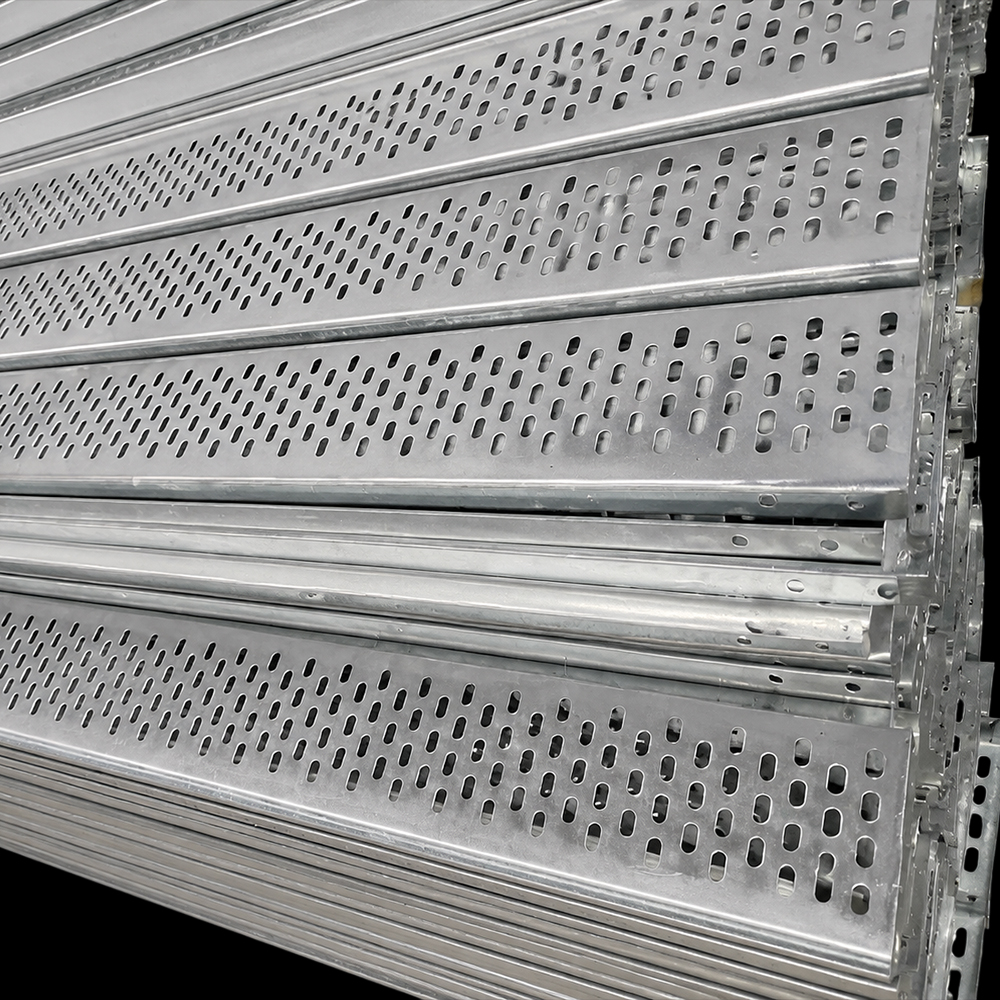

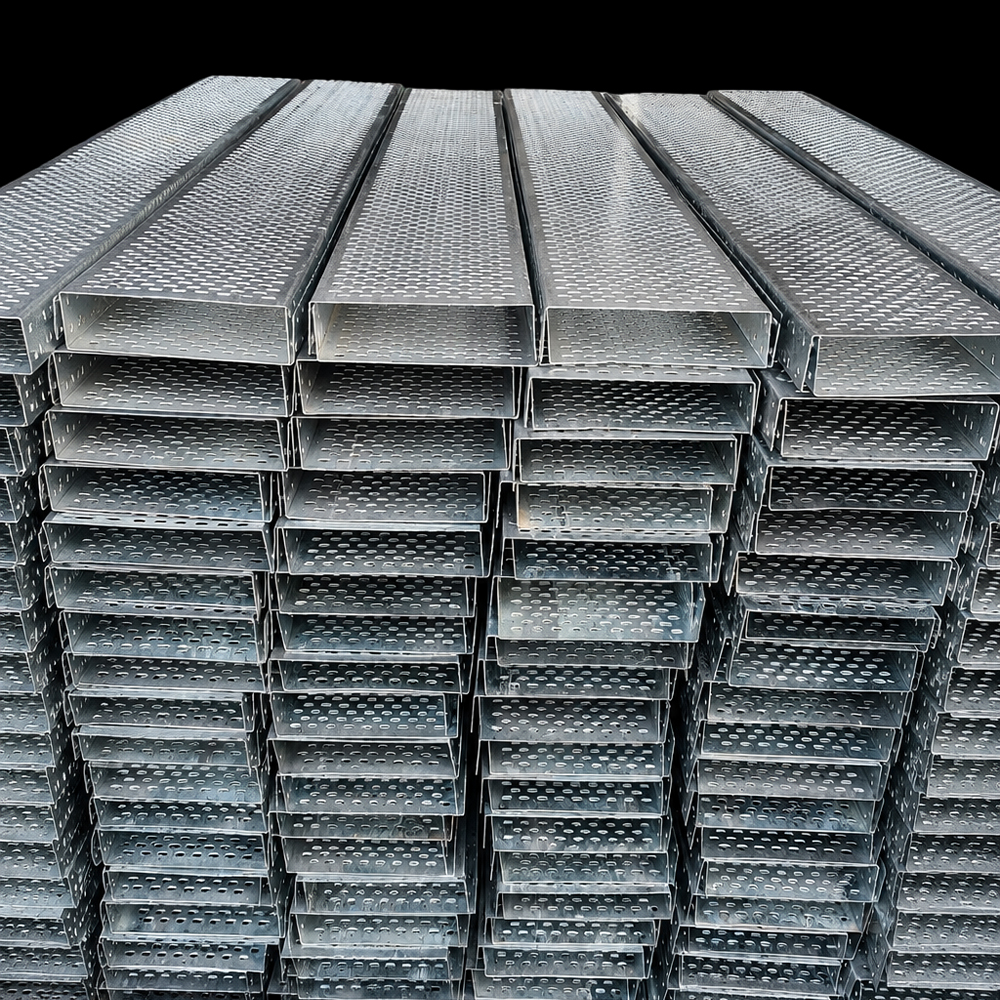

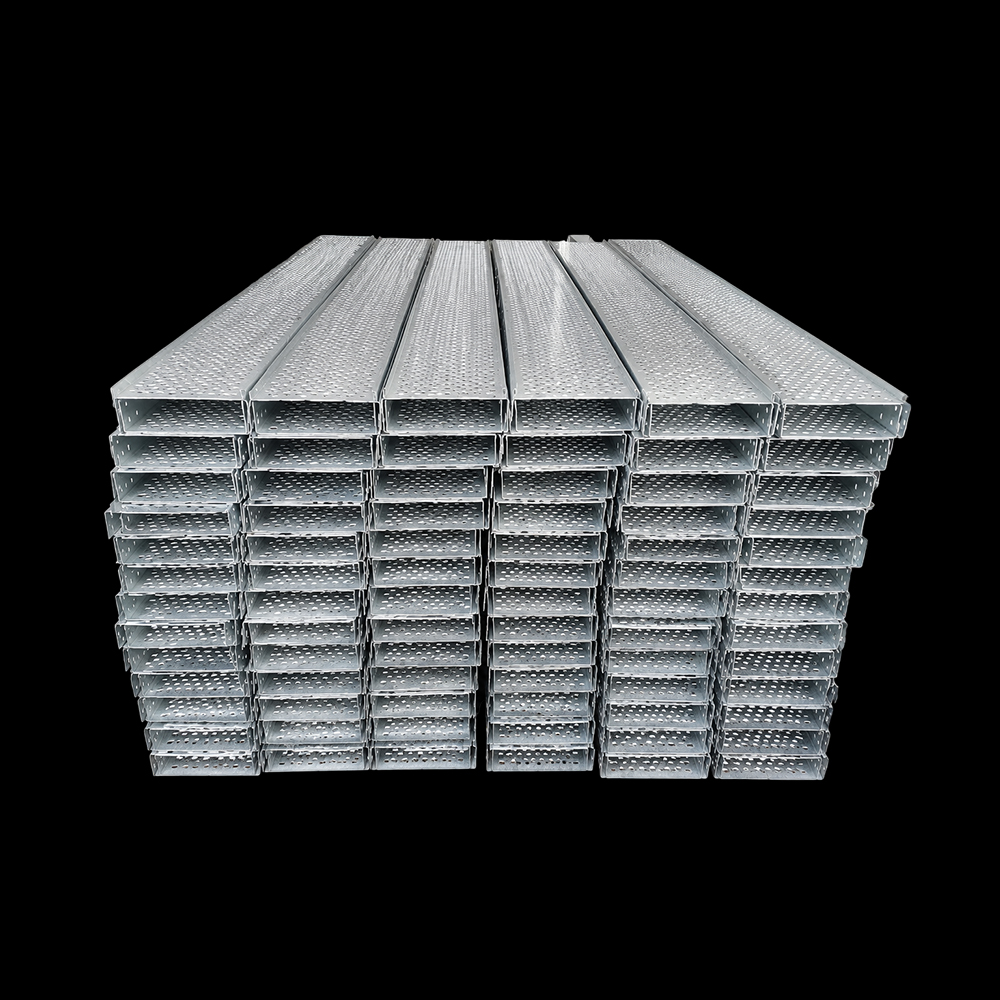

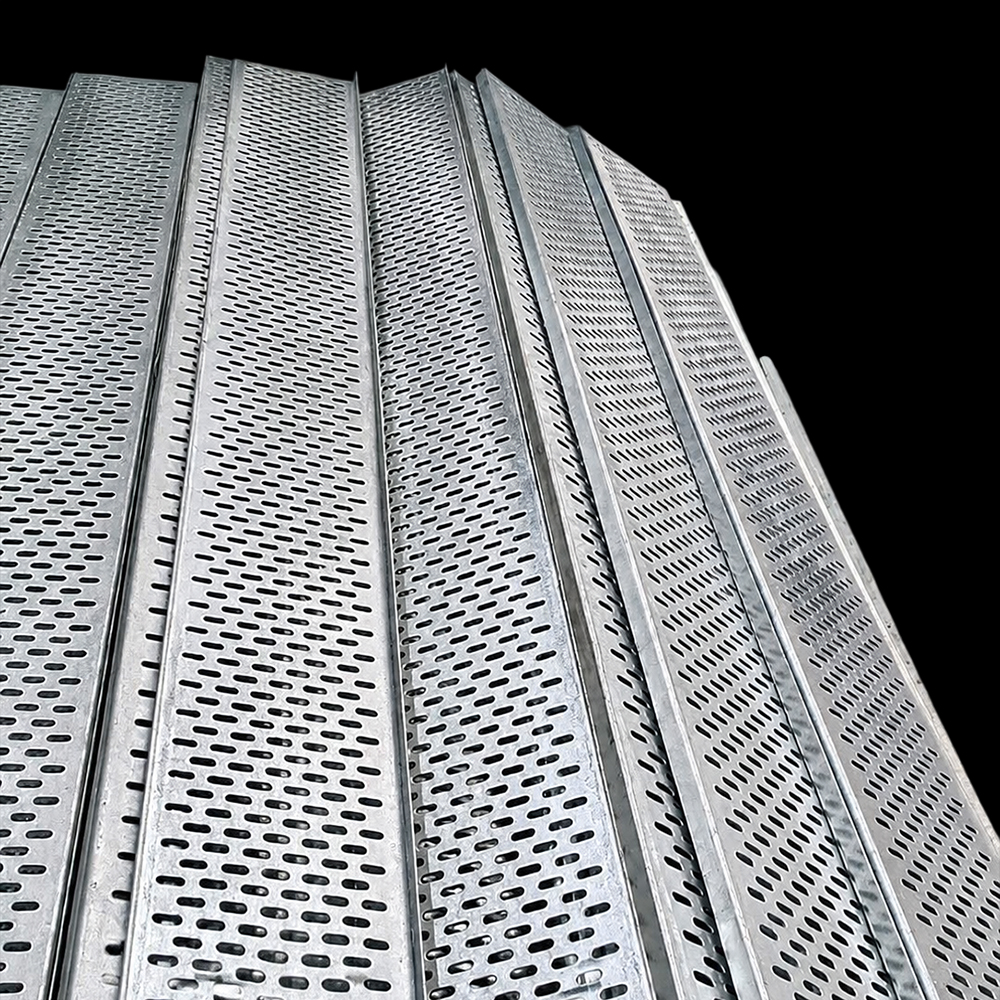

PERFORATED TYPE CABLE TRAY

Perforated Cable Tray can be differnt sizes as per client requirement fabricated from 1.60 to 3.00 mm thick MS sheet in standard length of 2500 mm / 3000 mm, complete with:

• Coupler Plates of suitable size and thickness
• Sets of Electro-Galvanized Nuts, Bolts, and Plain Washers

Specifications:

• Width: As per client requirement
• Height: as per client requirement
• Thickness: 1.60 mm minimumupto3.00 mm
• Length: 2500 mm / 3000 mm
• Finish: Hot Dip Galvanized
• Zinc Coating: average 64 microns or as per client requirement

Available Finishes:

• Red Oxide Painted

• Red Oxide Primer with Finish Paint

• Powder Coated

• Hot Dip Galvanized

Categories Based on Load-Bearing Capacity:

• Light Duty Ladder Trays

• Medium Duty Ladder Trays

• Heavy Duty Ladder Trays

We offer covers in a variety of finishes, including:

• Hot Dip Galvanized

• Pre-Galvanized

• Red Oxide Painted

• Powder Coated

• Red Oxide with Finish Enamel Paint

• Anodized / Non-Anodized Aluminum Covers
