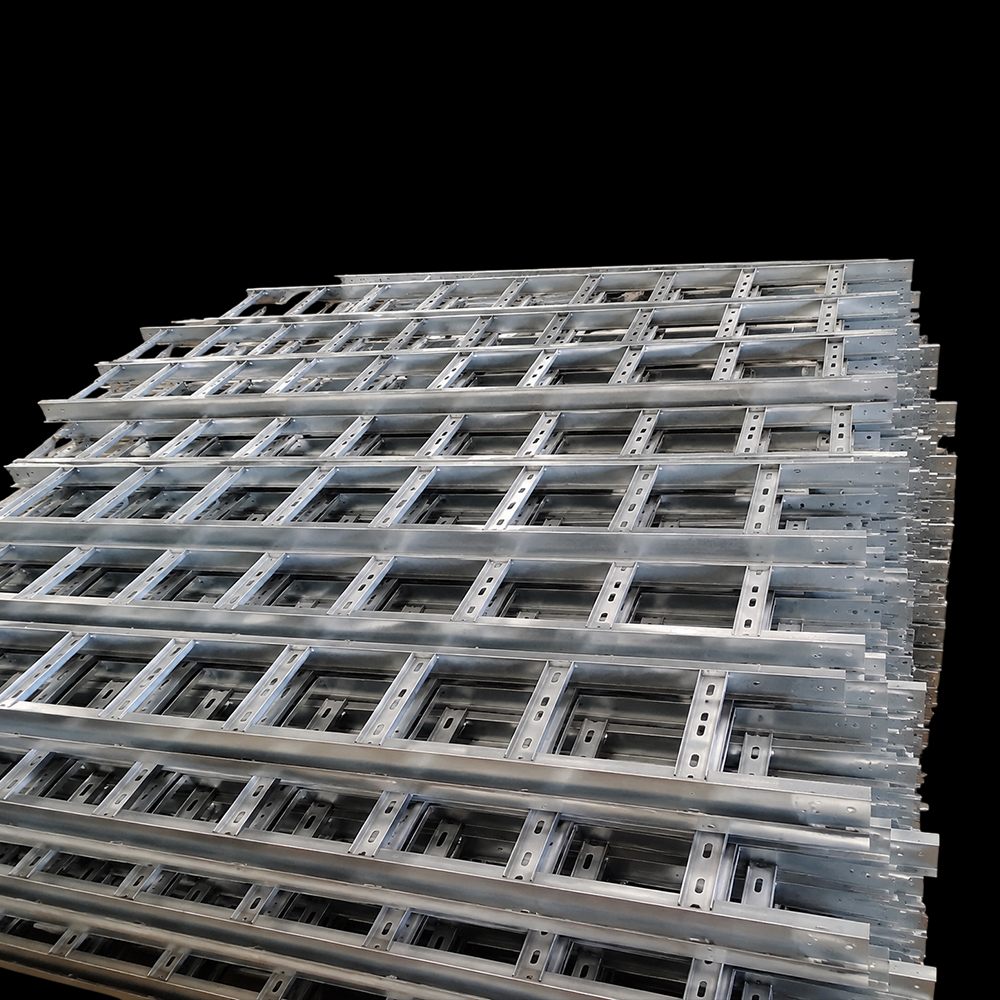

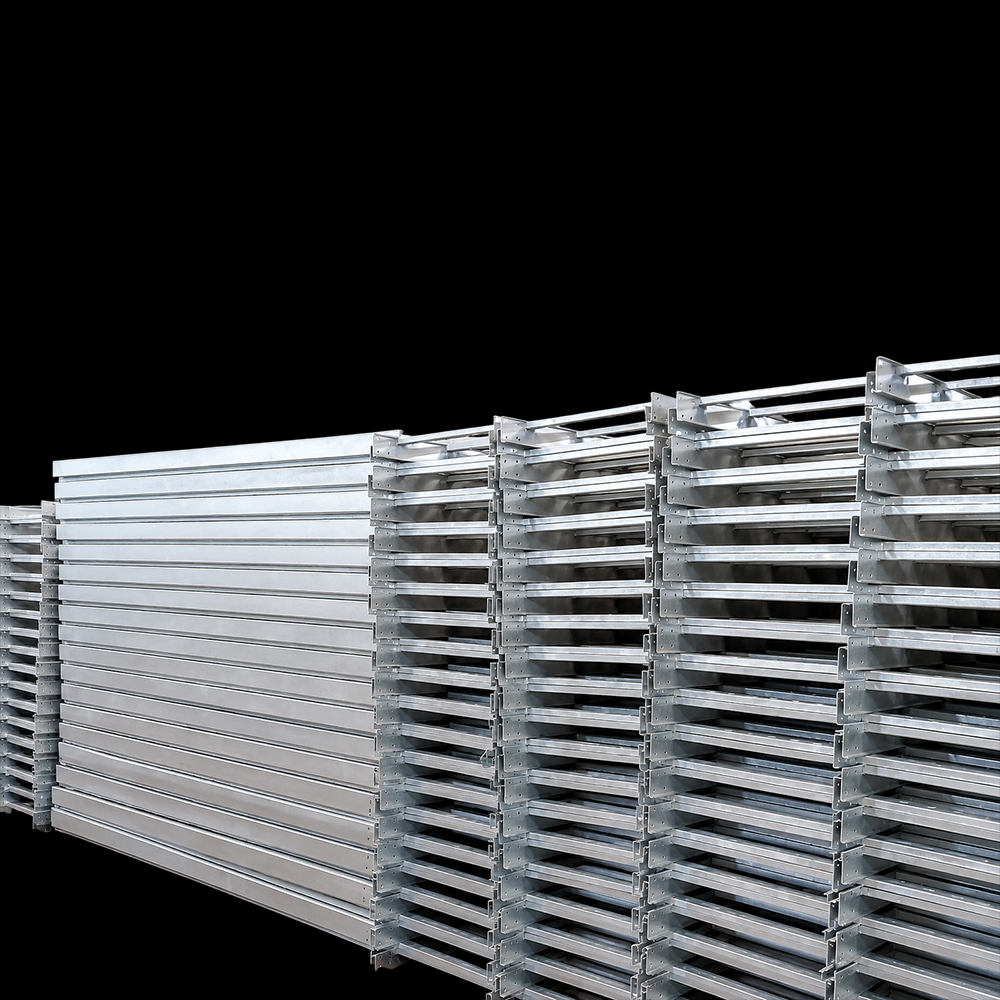

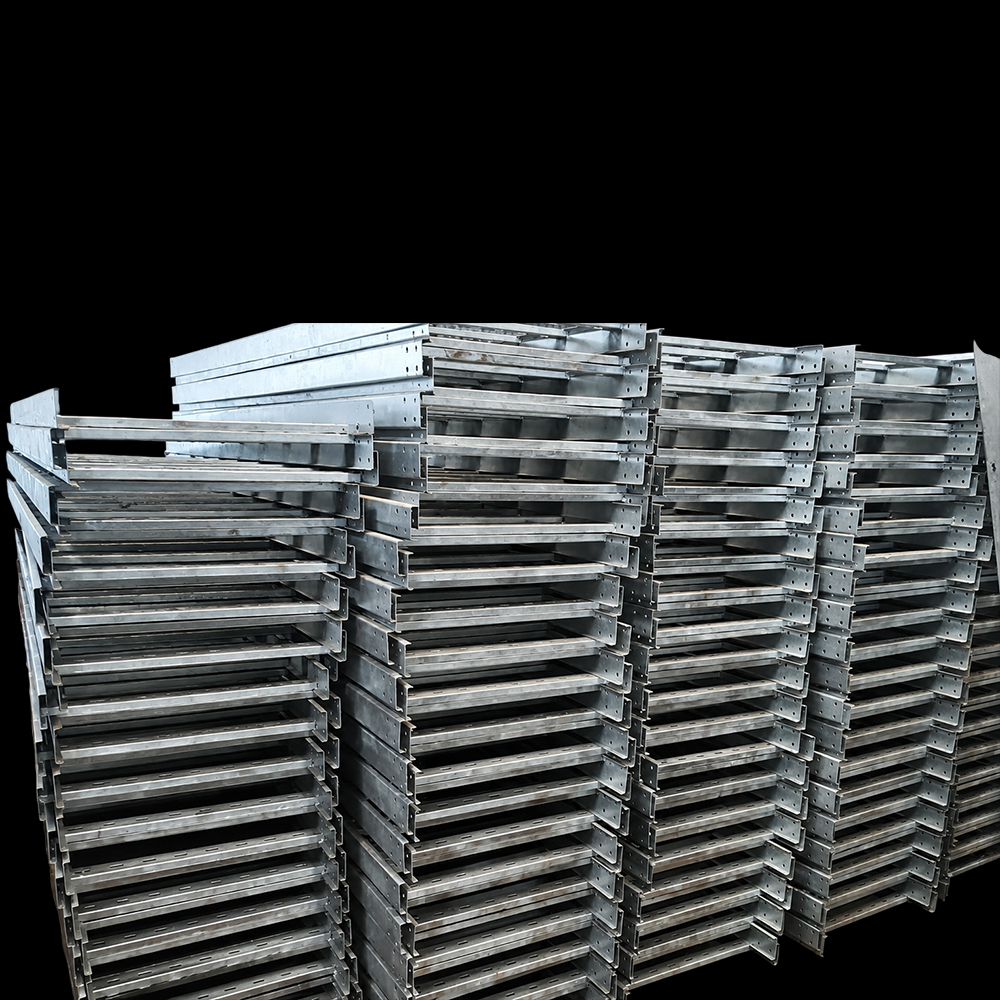

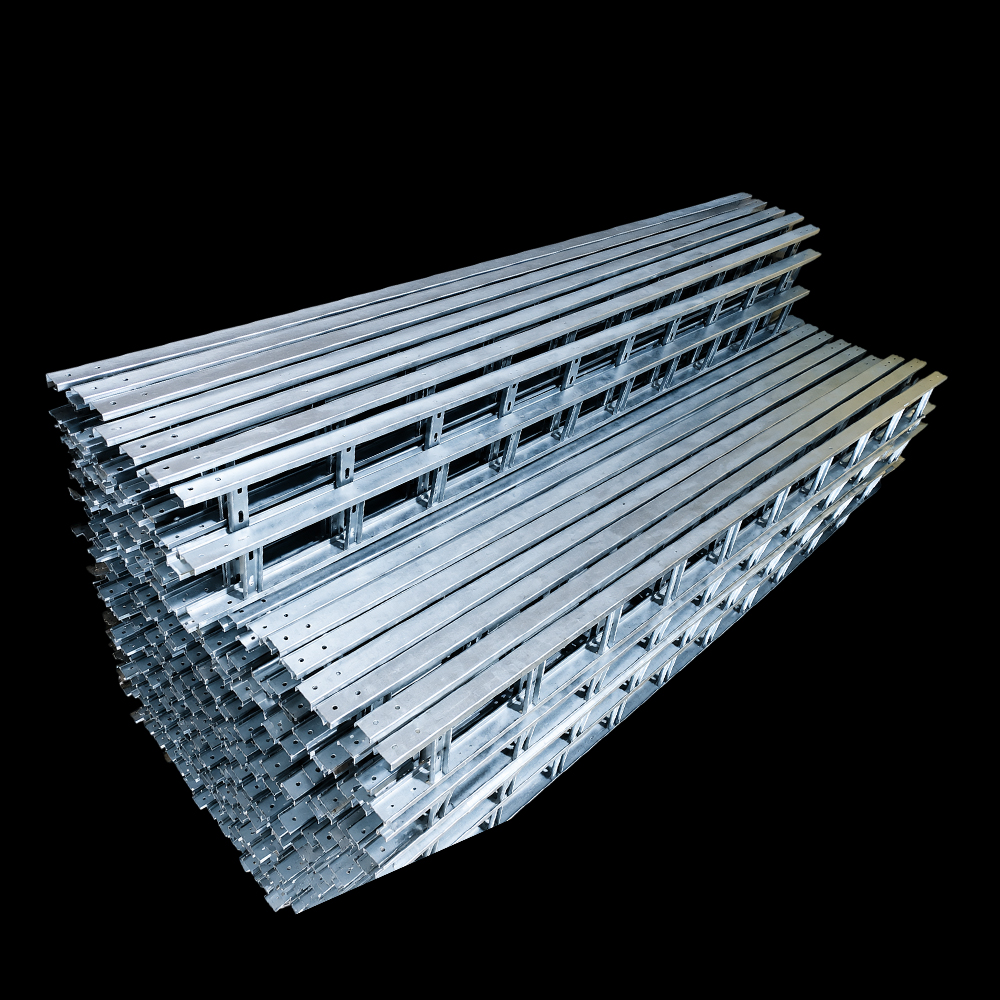

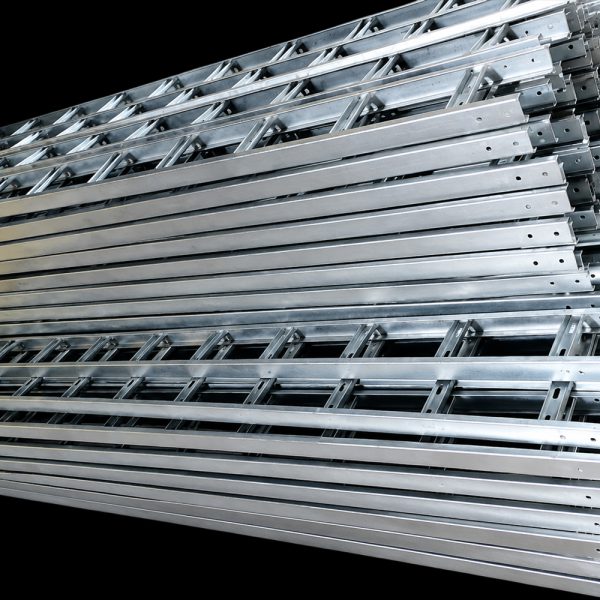

LADDER TYPE CABLE TRAY

Hot Dip Galvanized Ladder Type Cable Tray is manufactured as per IEC: 61537, IS: 2629 & IS: 4759.

Ladder Cable Tray can be different sizes as per client requirement, fabricated from 2.00 to 3.00 mm thick MS sheet in standard length of 2500 mm / 3000 mm, complete with:

• Coupler Plates of suitable size and thickness
• Sets of Electro-Galvanized Nuts, Bolts, and Plain Washers

The cable tray shall be of Ladder Type with the following specifications:

• Width: minimum 150 mm and maximum up to 1000 mm
• Channel Size: As per standard or as per client requirement
• Rung Size: As per standard or as per client requirement
• Height: minimum 50 mm or above
• Thickness: 1.60 mm to 3.00 mm
• Standard Length: 2500 / 3000 mm
• Zinc Coating: average 64 microns or as per client requirement

Available Finishes:

• Red Oxide Painted
• Red Oxide Primer with Finish Paint
• Powder Coated
• Hot Dip Galvanized

Categories Based on Load-Bearing Capacity:

• Light Duty Ladder Trays
• Medium Duty Ladder Trays
• Heavy Duty Ladder Trays
• Extra Heavy Duty Ladder Trays

We offer covers in a variety of finishes, including:

• Powder Coated
• Hot Dip Galvanized
• Pre-Galvanized
• Red Oxide Painted
• Red Oxide with Finish Enamel Paint
• Anodized / Non-Anodized Aluminum Covers
