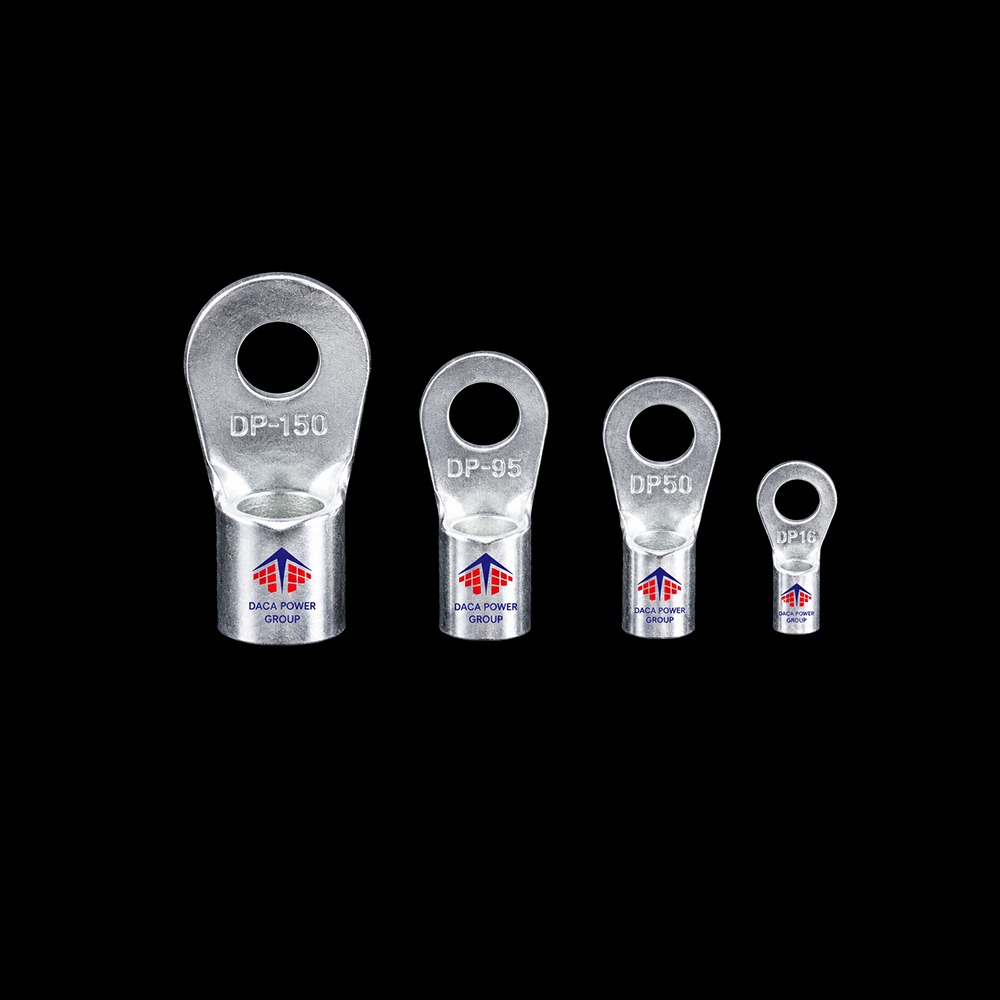

Copper Ring Terminals are electrical connectors used to terminate copper conductors and provide a secure bolted connection to electrical equipment such as busbar, terminal blocks, circuit breakers, transformers, motors, and control panels.
Entire Range of copper sheet terminals are made from ETP Grade Copper. Terminals are exclusively designed for sturdy performance even on adverse conditions. Ranging from 0.5 mm to 150 mm. We also under-take manufacturing of tailor made item as per customers requirement.
Application:
Copper ring type lugs are widely used in:
• Power distribution panels
• Electrical switchboards
• Motor control centers (MCC)
• Control panels
• Transformers
• Circuit breakers
• Busbar connections
• Industrial machinery
• Renewable energy systems (solar and wind)
• Battery connections
• Automotive and marine electrical systems
• Railway and telecom installations
Specifications:
Material: Electrolytic Copper (ETP Copper, 99.9% purity)
Finish: Electro-tinned for corrosion resistance also available in lead coating
Type: Ring Type Crimping Lug
Conductor Material: Copper
Cable Size: 1.5 mm² to 150 mm²
Insulation: Non-insulated, Insulated, Pre-insulated available
Mounting: Bolt-on ring connection
