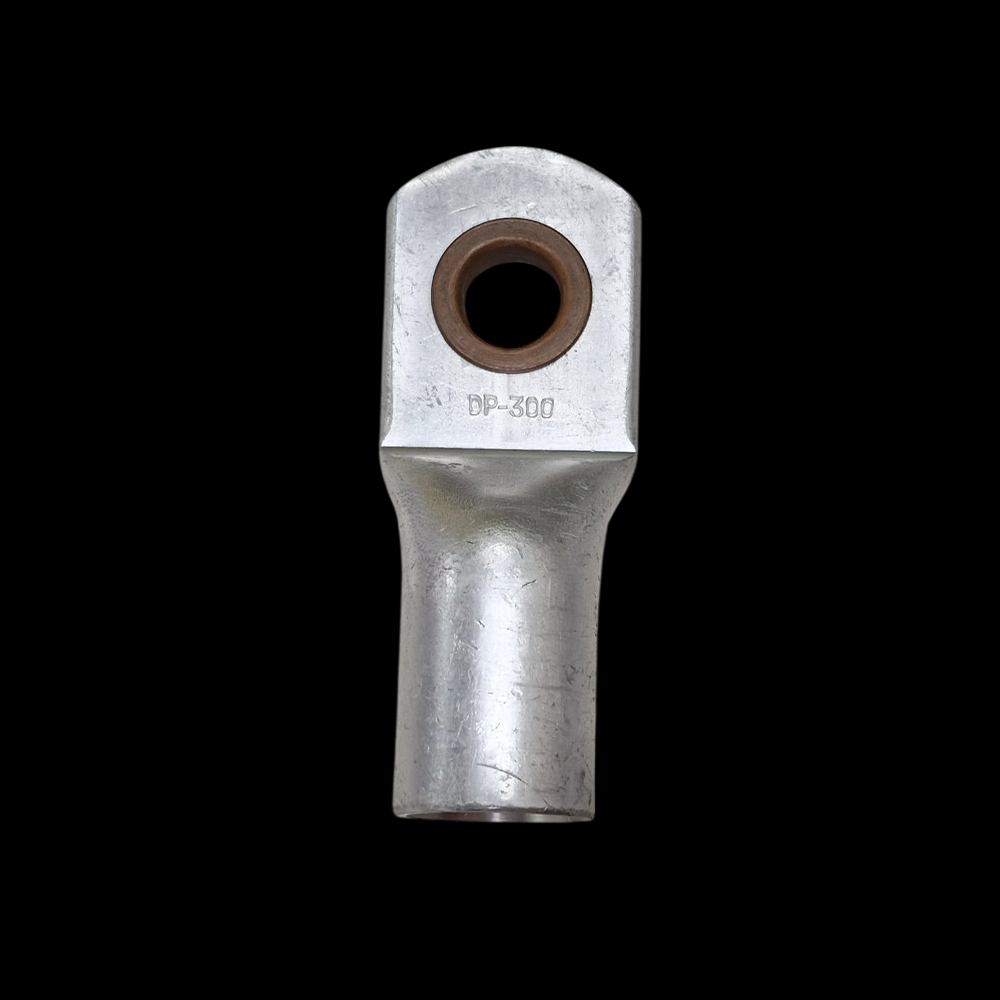

BI-METALLIC LUGS (AL. LUG WITH COPPER RING)

BIMETALLIC TERMINALS – FRICTION WELDED TYPE

PURITY: ALUMINIUM: 99.5%, COPPER: 99.9%

CONDUCTIVITY: ALUMINIUM: 60%, COPPER: 99.25%

Finish: Natural

Bi-metallic Terminals for aluminium conductors are crafted from solid materials using friction welding. In this method, aluminium and copper join through the heat generated when aluminium rotates against copper under pressure. This superior technique ensures a complete and reliable connection between aluminium and copper.

The barrels are capped and filled with grease to prevent oxidization of the aluminium, ensuring longevity and optimal performance in aluminium conductor applications.

Manufactured from E.C. Grade Aluminium Tubes with a conductivity of 60% I.A.C.S. as per IS 5082, these Bimetallic Cable Lugs undergo a fusion process with E.C. Grade Copper Bushes.

Enhancing durability, the lug’s barrel is filled with a corrosion-inhibiting compound and supplied with a PVC cap.

NOTE:

1. Combinations of Bi-Metallic Compression Joints are designed on the basis of current carrying capacity of Individual cables.
2. In case additional combinations are required it can be provided against specific request.

Size: 16 SQ MM – 400 SQ MM
